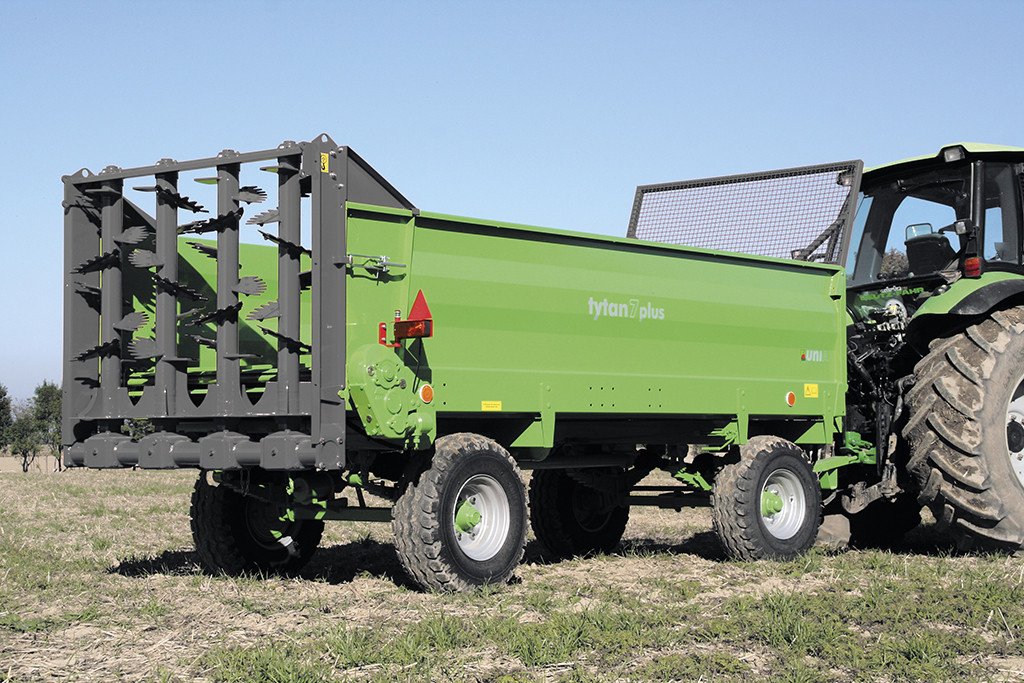

TYTAN 7 PLUS
FERTILIZATION - MANURE FERTILIZATON - TYTAN 7 PLUS
Machine description
Rozrzutniki TYTAN 7 PLUS
Standard equipment
| TYTAN 7 PLUS |
|
Accessories at extra charge
| TYTAN 7 PLUS |
|
Construction
 |

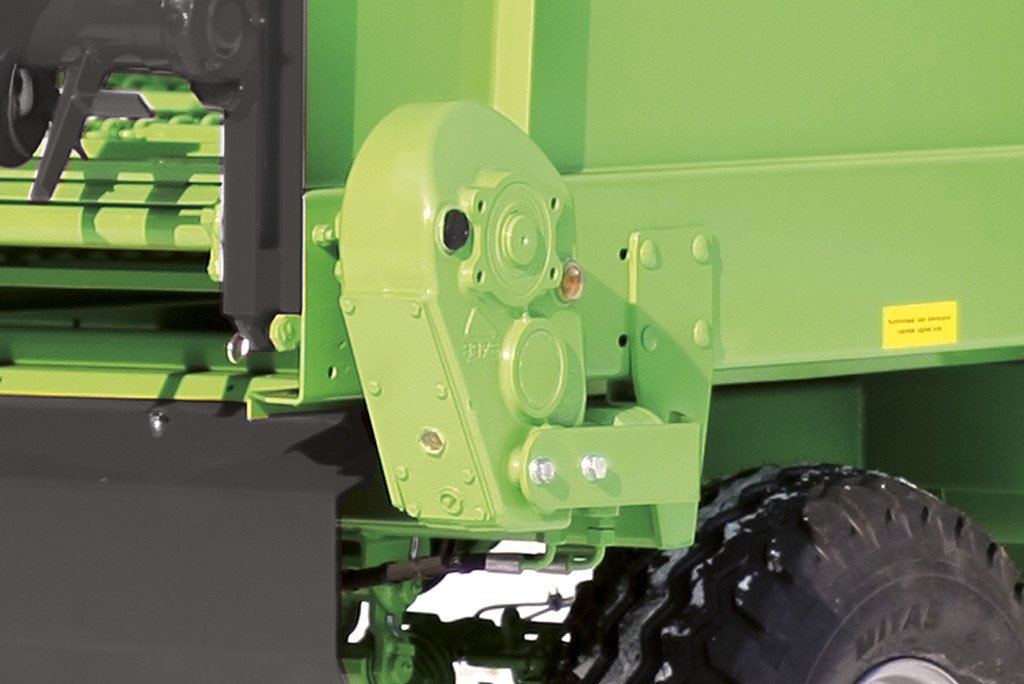

Hydraulic conveyor drive In TYTAN spreaders, hydraulic drive of the floor conveyor is transmitted by a gear designed for heavy loads. The use of hydraulic drive of floor conveyor ensures uniform feeding of material (e.g. manure, peat or lime) to the spreading units. |
 |

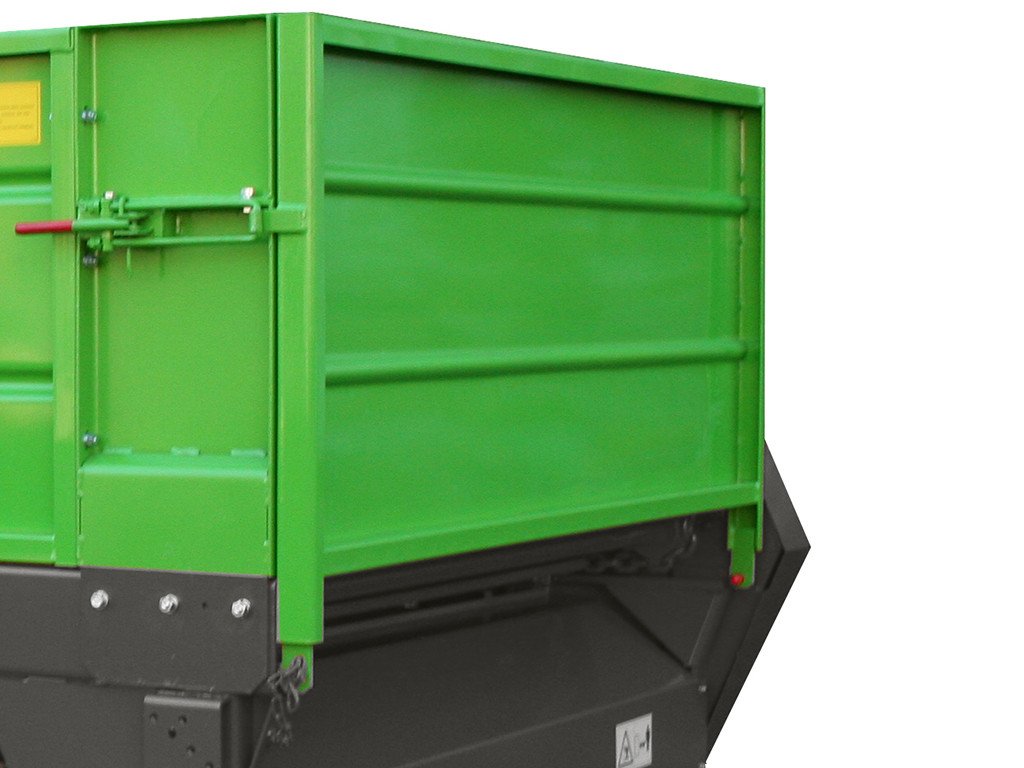

Spreader has a standard equipmant with a rear wall, after its assumption the fertilizer can works as a trailer to transport agricultural products |
 |

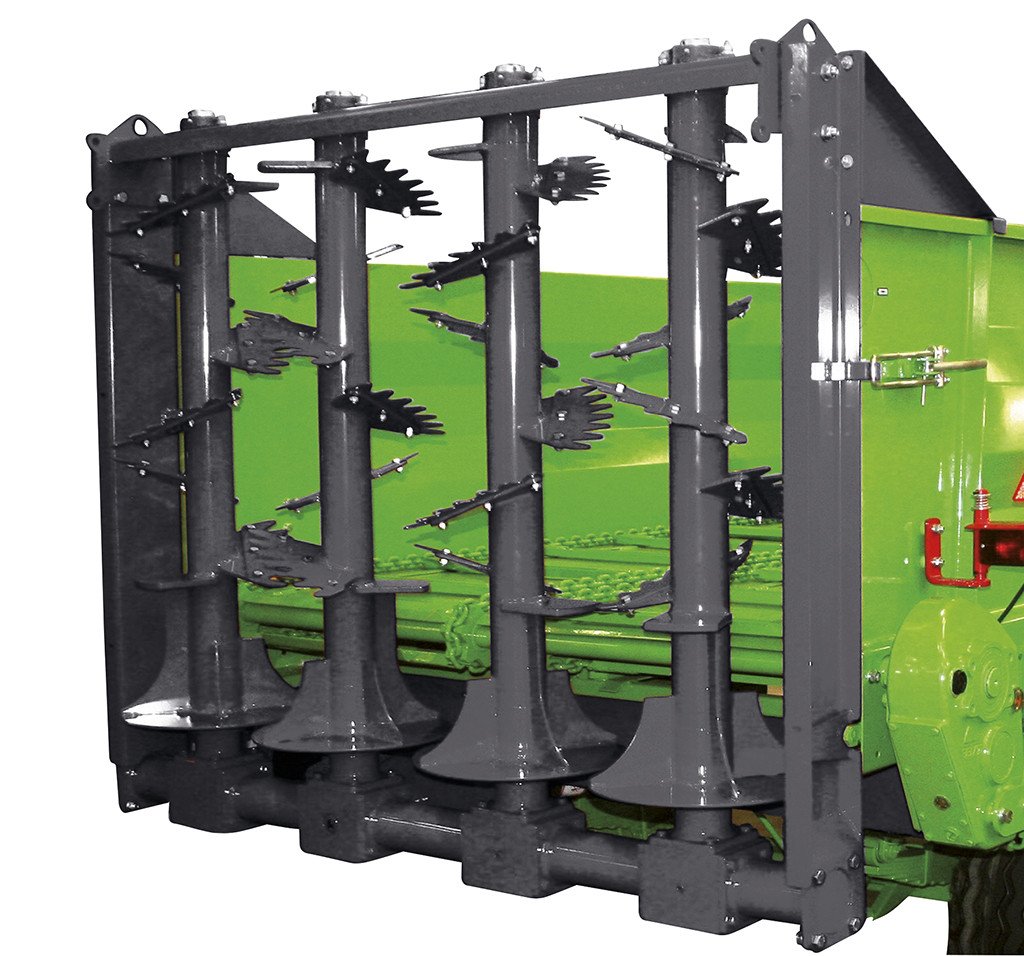

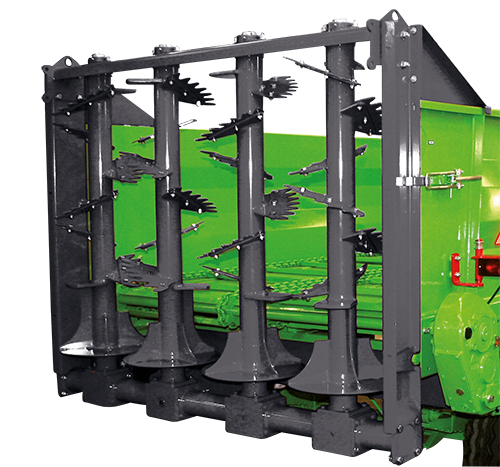

VERTICAL 4-SHAFT ADAPTER (MANURE) The spreaders are supplied with 4-shaft vertical adapter inclined towards the front of the machine that ensure uniform manure spread to the width from 6 to 8 m. The vertical beater is equipped with removable, bolted teeth made of high quality steel. |
 |

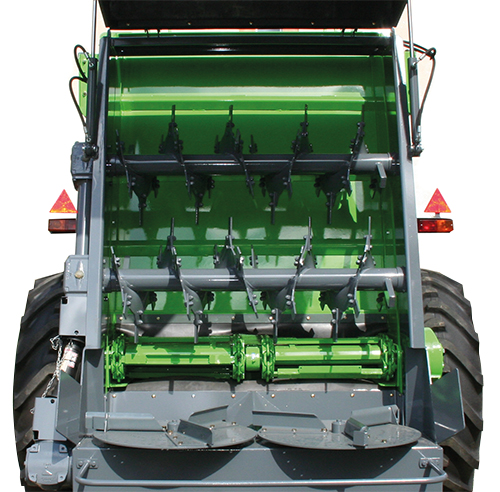

2-SHAFT HORIZONTAL ADAPTER + SPINNER DISC (COMPOST, LIME, PEAT) Spinner disc adapter with 2-drum auger horizontal adapter serves for spreading of rotted manure (without fresh straw), lime, sludge, compost and peat to the width from 12 to 20 m. |
Technical Specifications
| TYTAN 7 PLUS |
||
| Type of adapter | horizontal 2-shaft |
vertical 4-shaft |
| Nominal load capacity [kg] | 5000 | |
| Load capacity on the field (kg) | 7 500 | |
| Body / manure capacity [m3] | 5,5 + 3 | |
| Working width [m] | 2,5 | 4÷6 |
| Loading height [m] | 1,89 | |
| Overall dimensions Length / Width / Height [m] |
6,34 / 2,05 / 2,6 | |
| Height of sides | 0,75 | |
| Tyres | 11,5 / 80 × 15,3 | |
| Number of axles with springs |
2 | |
| Spreader weight [kg] | 3300 | 3350 |
| Power demand [HP] | 60÷70 | |
